Encircled Flux Multimode Adapter

New generation of Multimode Fiber Adapters adds full standards compliant fiber certification capability

WX_AD_EF_MM2 A light source and power meter are used to measure the power loss and length of optical cables at 850 and 1300 nm. Certification of Multimode fibers has often been a contentious issue due to the inherent uncertainties in the measurement process. ISO/IEC and TIA have recently adopted a Encircled Flux (EF) standard that standardizes the launch condition for the light sources used in Multimode test equipment. The WireXpert’s new EF compliant adapters give you guaranteed compliance to the EF standard IEC 61280-4-1.

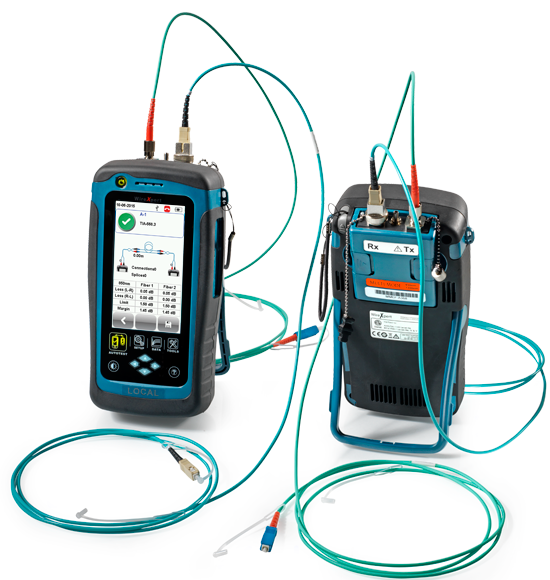

EF Multimode Adapter

Why EF Multimode Adapter?

One cable certifier to test copper- as well as multimode-, singlemode and MPO/MTP-fiber installations.

Improve productivity of technicians with easy setting and fast testing

Test single fiber links, trouble-shoot links with light source and power meter tools

Easy pictorial work-flow makes it easy to avoid human errors in testing

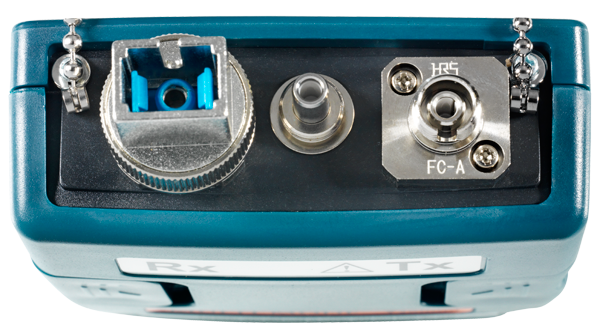

EF Multimode Adapter

Features

Compliant to IEC- 61280-4-1 EF standards and IEC-14763-3

Provides validation to different modal behaviors of various fiber optic manufacturers

Interchangeable robust SC, LC and ST adapter for EF kit

Provides troubleshooting with built-in Visual Fault Locator (VFL)

Improves repeatability of measurements

Reduces insertion loss variation between laboratory and field instruments

EF Multimode Adapter

Physical characteristics

Power Meter Specifications
Input Connector	Interchangeable connector with LC, ST and SC options) Standard kit ships with SC
Detector Type	InGaAs
Wavelengths	850nm, 1300nm
Power Measurement Range	-15 dBm to -60 dBm at 850nm, -15 dBm to -70 dBm at 1300 nm
Measurement Linearity	<±0.1 dB in the power measurement range
Re-calibration Period	1 year

Loss/Length Specifications
Specification	MMEF
Input/Output Connectors	Interchangeable connector with LC, SC, ST options
Launch Condition	Encircled Flux compliant to IEC 612480-4-1
Fiber Types Tested	50/125, 62.5/125
Source Type and Wavelengths	850/1300 nm
Length Measurement Accuracy	±1.5m
Output Power (Nominal)	> -20 dBm at 850, 1300 nm
Output Power Stability	±0.02 dB after 3 minute warm up time

Visual Fault Locator (VFL)
Output Power	>-4dBm, < -1 dBm Continuous, blinking mode CW output SC connector
Operating Wavelength	650 nm
Output Modes	Pulsed, Continuous
Connector Adapter	2.5mm
Laser Safety	Class II

Environmental Specifications
Operating Temperature	0° C to 45° C
Storage Temperature	-20° C to 50 °C
Safety	EN61010

EF Multimode Adapter

Delivery

WX_AD_EF_MM2
Encircled flux compliant multimode fiber adapter set (850nm and 1300nm). includes a pair of FC-SC modally transparent test cords, a pair of SC-SC tail cordsand cleaning kit

WX_AC_LC_EF_MM_CORDKIT
LC test cord kit for EF-compliant multimode adapter, includes a pair of modally transparent FC-LC test cords, a pair of LC-LC simplex tail cords, a pair of interchangeable lc adapters and a pair of LC-LC duplex adapters

WX_AC_EF_MM_REFCORD_SC2
A pair of modally transparent FC-SC test reference cords and a pair of SC-SC tail cords

WX_AC_MM_ST_KIT
A pair of EF mm 50um FC to ST reference cords, a pair of ST to ST mm 50 mm reference cord, 2 qty ST adapter
