Softing WX_AD_SM2 单模光纤测试仪WX4500(原赛博Psiber）

WireXpert's singlemode fiber adapters offer unmatched performance in certification testing of premise fiber optic cabling.

1、连讯达20年测试仪器仪表行业经验；
2、100%原装正品保证，承诺假一罚十；
3、8分钟报价，价格行业优惠，现货即发；
4、免费保修，免费培训，全天24小时技术支持；

咨询热线：13798421872

浏览过该产品的人也看了

产品详情
技术规格
型号和配件
文档与软件
更多信息
联系我们

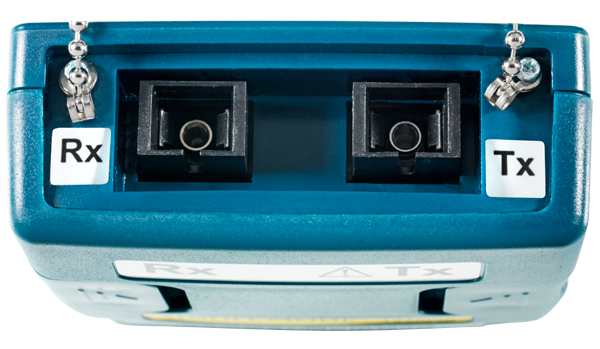

Single Mode Adapter

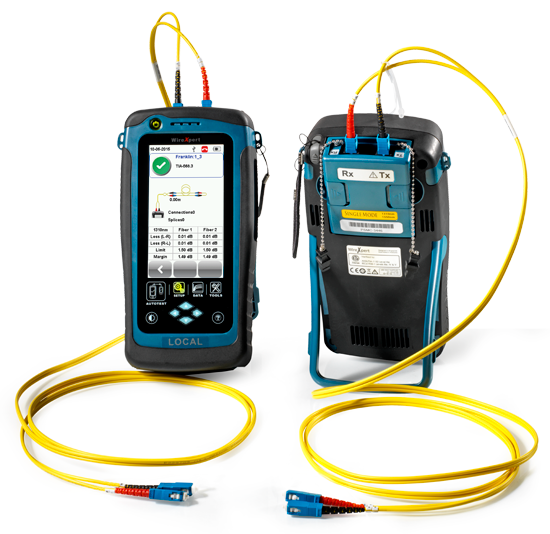

Fast and Intuitive Fiber Certification WireXpert Optical Loss Test Kit

WireXpert's singlemode fiber adapters offer unmatched performance in certification testing of premise fiber optic cabling. In addition to 6-second dual ended, dual wavelength certification testing, WireXpert provides intuitive graphical work-flow for bi-directional testing.

WireXpert makes the task of selection of set-reference method and test configuration straigth-forward with the advantage of easy to follow pictorial steps.

Single Mode Adapter

Why Single Mode Adapter?

Improve productivity of technicians with easy and fast configuration and testing

Test single fiber links, troubleshoot with light source and power meter tools

Pictorial work-flow makes it easy to avoid human errors in testing

WX_AD_SM2细节

Single Mode Adapter

Features

Fast, 6-seconds autotest performs dual wavelength certification testing

Intuitive selection of test configuration and reference setting

Allows 1,2, or 3-jumper referencing

Seamless reporting in ReportXpert software with copper test results

Automated standards based label creation

Light source and power meter functions converts WireXpert into two independent instruments

Allows certification single fiber links in addition to duplex links

Allows loopback testing independantly using WireXpert Local or Remote units, doubling the test capacity

Single Mode Adapter

Physical characteristics

General specifications
Connector Type	SC (LC with optional kit)
Wavelengths	1310/1550 nm
Dynamic Range	31 dB
Length range	1.5 m -10,000 m
Length Resolution	1.5m
Output Power	-5 dBm to -8 dBm @1550 nm -7 dBm to -9 dBm @ 1310 nm
Peak Wavelength	1300 nm to 1315 nm @1310 nm 1535 nm to 1560 nm @1550 nm
Receiver Sensitivity	-40 dBm
